Directional Blur (Dblur)

Directional Blur

Status:

Maintained

Keyframes:

No

Source library:

avfilter

Source filter:

dblur

Available:

On Master only:

No

Known bugs:

No

Description

This effect applies a directional blur to the clip.

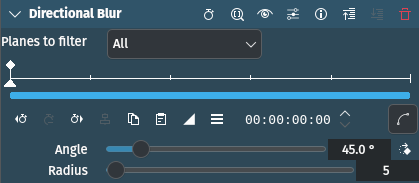

Parameters

Parameter	Value	Description
av.angle	Float	Sets the angle for the direction. Range is from 0.000 to 360.000, default is 0.000.
av.radius	Float	Sets the radius for the direction. Range is from 5.000 to 8192.000, default is 5.000.
av.planes	Integer	Sets the color space plane the effect is applied to (see below)

Planes

0/8 - Alpha	Alpha channel
1/9 - Y	Luminance
2/10 - U	Chroma (U plane)
3/11 - V	Chroma (V plane)
4/12 - Red	Red channel
5/13 - Green	Green channel
6/14 - Blue	Blue channel
7/15 - All	All planes will be affected by the blur amount (default)

Hinweis

Using the slider or mouse wheel for av.radius results in large fixed increments and therefore overly strong blur effects. It is recommended to use direct input for better results.
