Draw Box

Draw Box

Status:

Maintained

Keyframes:

Yes

Source library:

avfilter

Source filter:

drawbox

Available:

On Master only:

No

Known bugs:

No

Description

This effect/filter draws a colored box on the input video.

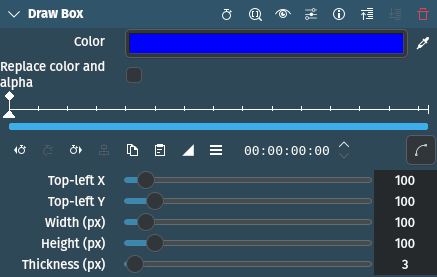

Parameters

Parameter	Value	Description
Color	Picker	Defines the color for the box
Replace color and alpha	Switch	If the input has alpha, checking this will overwrite the video’s color and alpha pixels with the pixels of the painted box. By default (off), the box will be composited onto the input, leaving the video’s alpha intact.
Top-left X / Y	Integer	Defines the coordinates for the top left-hand corner of the box (coordinates are based on the project dimension settings)
Width (px)	Integer	Defines the width in pixels
Height (px)	Integer	Defines the height in pixels
Thickness (px)	Integer	Defines the thickness of the line in pixels. If set high enough, the box is essentially filled.
