Lens Correction (avfilter)

Lens Correction

Status:

Maintained

Keyframes:

No

Source library:

avfilter

Source filter:

lenscorrection

Available:

On Master only:

No

Known bugs:

No

Color depth:

10bit

Tutorial:

No

Description

This effect/filter corrects radial lens distortion. It can be used to create an „old TV set or monitor“ curving effect.

See Lens Correction (frei0r) if you need to adjust brightness.

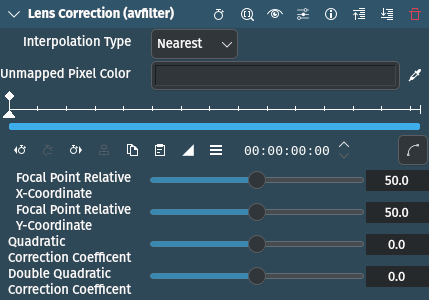

Parameters

Parameter	Value	Description
Focal point relative-X coord	Float	Set relative center X
Focal point relative-Y coord	Float	Set relative center Y
Quadratic correction coeff.	Float	Set quadratic distortion factor
DoubleQuadratic correction coeff.	Float	Set double quadratic distortion factor

Bemerkung

This effect may produce different results than Lens Correction (frei0r) although the name may suggest the only difference is the effects library. Lens Correction (frei0r) uses frei0r.lenscorrection, whereas Lens Correction (frei0r) uses avfilter.lenscorrection. There are different options available in each effect.
