VR360 Equirectangular to Stereo

VR360 Equirectangular to Stereo

Status:

Maintained

Keyframes:

Yes

Source library:

frei0r

Source filter:

bigsh0t_eq_stereo[1]

Available:

On Master only:

No

Known bugs:

No

Description

This effect/filter projects a stereographic image from an equirectangular source. Use this to create the „Little Planet“ effect from VR360 footage.

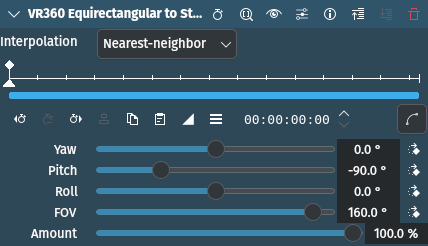

Parameters

Parameter	Value	Description
Interpolation	Selection	Choose the interpolation algorithm
Yaw	Degree	Defines the direction of view left or right
Pitch	Degree	Defines the direction of view up or down
Roll	Degree	Defines the direction of view like tilting your head left or right
FOV	Integer	Field of View (the wider the angle the wider/zoomed out the view)
Amount	Percent	Determines the amount of stereographic projection to mix in. Range is from 0% (standard rectilinear projection ) to 100% (full stereographic projection)

The following selection items are available:

Interpolation

Nearest-Neighbor	default
Bilinear

---

[1]

Parts of this documentation have been taken from the website of the filter’s developer bigsh0t.
