Motion Compensation Deinterlacer

Motion Compensation Deinterlacer

Status:

Maintained

Keyframes:

No

Source library:

avfilter

Source filter:

mcdeint

Available:

On Master only:

No

Known bugs:

No

Description

This effect/filter applies motion-compensation deinterlacing.

It needs one field per frame as input and must thus be used together with yadif=1/3 or equivalent.

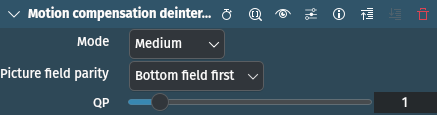

Parameters

Parameter	Value	Description
Mode	Selection	Sets the deinterlacing mode
Picture field parity	Selection	Sets the picture field parity assumed for the input video
QP	Switch	Sets the per-block quantizing parameter (QP) used by the internal encoder. Higher values should result in a smoother motion vector field but less optimal individual vectors. Default value is 1.

The following selection items are available:

Mode

Fast	Iterative motion estimation
Medium	Iterative motion estimation (default)
Slow	Iterative motion estimation
Extra slow	Iterative motion estimation using multiple reference frames

Picture field parity

Top field first
Bottom field first	default
