3-Point Balance¶
Description

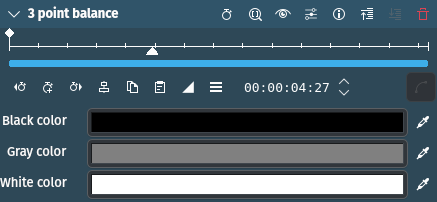

This effect is a simple implementation of the Bezier Curves effect. With the simplified interface you select the shades of grey using the
color picker for Black Level, Grey Level and White Level, or use the color selection buttons.
Parameters
Parameter |
Value |
Description |
|---|---|---|
Split screen preview |
Switch |
Select this to have a split screen in the Project Monitor where you can compare the results of the effect/filter with the original clip. |
Source image on left side |
Switch |
If Split screen preview is enabled, the original clip is on the left side of the split screen. Uncheck this to have the original on the right-hand side of the split screen. |
Black color |
Picker |
Represents the black levels (dark tones) for the clip |
Gray color |
Picker |
Represents the grey levels (mid tones) for the clip |
White color |
Picker |
Represents the white levels (highlights) for the clip |
Notes
Siehe auch
Bezier Curves effect
