Color Correct¶

Description

This effect/filter adjusts the color white balance selectively for blacks and whites. This filter operates in YUV color space.

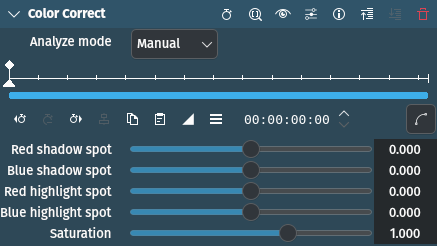

Parameters

Parameter	Value	Description
Analyze mode	Selection	If set to anything other than manual it will analyze every frame and use derived parameters for filtering the output frame.
Red shadow spot	Float	Set the red shadow spot. Default is 0.0. Allowed range is from -1.0 to 1.0.
Blue shadow spot	Float	Set the blue shadow spot. Default is 0.0. Allowed range is from -1.0 to 1.0.
Red highlight spot	Float	Set the red highlight spot. Default is 0.0. Allowed range is from -1.0 to 1.0.
Blue highlight spot	Float	Set the blue highlight spot. Default is 0.0. Allowed range is from -1.0 to 1.0.
Saturation	Float	Set the amount of saturation. Default value is 1.0. Allowed range is from -3.0 to 3.0.

The following selection items are available:

Analyze mode
