Bezier Curves¶

Description

This effect is used to adjust the color levels similar to the 3-Point Balance but with finer control. Although the effect defaults to the RGB channel, it is mostly used with the Luma channel. See also the Kurven effect that does the same thing but does not have the curve handles.

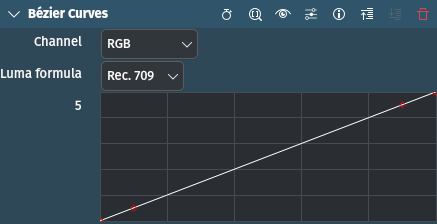

Note the extended handles on the red dot in the middle with which you can adjust the steepness of the curve leading to and leaving the point.

Parameters

Parameter	Value	Description
Channel	Selection	Sets the channel to operate on
Luma formula	Selection	Defines the color space to operate in

The following selection items are available:

Channel

RGB
Red
Green
Blue
Alpha
Luma
Hue
Saturation

Default is RGB (all color channels)

Luma formula

Rec. 601
Rec. 709	(default)

Notes

See TheDiveO blog for an example of how to use this effect to color grade clips.
