Kaleidoscope¶

Description
Applies a kaleidoscope effect.

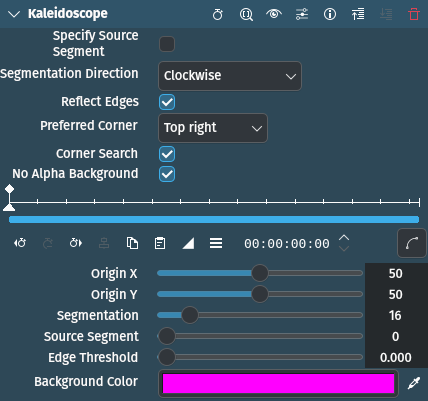

Parameters
Parameter |
Value |
Description |
---|---|---|
Specify Source Segment |
Switch |
If on, the source angle is read from Source segment, otherwise auto-calculated |
Segmentation Direction |
Selection |
Options are None, Counter clockwise, and Clockwise (default) |
Reflect Edges |
Switch |
If on, then reflections that end up outside the source reflect back into it, otherwise the specified background color is used |
Preferred Corner |
Selection |
Options are Top right (default), Top left, Bottom left, and bottom right |
Corner Search |
Switch |
If on, search clockwise for furthest corner, otherwise counter clockwise |
No Alpha Background |
Switch |
If reflection lies outside of source image and not reflecting back in, the selected color is used. Default is On. |
Origin X |
Float |
X-coordinate of the origin of the kaleidoscope. Default 50 (center). |
Origin Y |
Float |
Y-coordinate of the origin of the kaleidoscope. Default 50 (center). |
Segmentation |
Float |
Kaleidoscope segmentation / 128. Segmentations of 1, 2 or multiples of 4 work best. Default 16 (16/128 = 0.125) |
Source Segment |
Float |
Centre of source segment if Specify source segment is on. 0 is in +x and rotates counter clockwise |
Edge Threshold |
Float |
Edge threshold / 4, reflections outside the image but within this distance clamp to the edge. Default is 0 |
Background Color |
Picker |
Color to use if reflection lies outside of source image and not reflecting back in (Reflect edges is off). Default is pink. |
