Roberts¶
Description
This effect/filter applies the Roberts cross operator[1] to the input video stream. It detects edges (differential operator) and, in the default settings, colors them white and grainy. Compare Kirsch, Prewitt and Sobel effects.

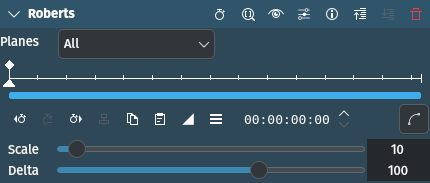

Parameters
Parameter |
Value |
Description |
---|---|---|
Planes |
Selection |
Set which planes will be processed, unprocessed planes will be copied. Default is YUV. |
Scale |
Integer |
Set value which will be multiplied with filtered result |
Delta |
Integer |
Set value which will be added to filtered result |
The following selection items are available:
Planes
None |
|
Y |
|
U |
|
YU |
|
V |
|
YV |
|
UV |
|
YUV |
Default |
Alpha |
