VR360 Equirectangular to Rectilinear

VR360 Equirectangular to Rectilinear

Status:

Maintained

Keyframes:

Yes

Source library:

frei0r

Source filter:

bigsh0t_eq_to_rect[1]

Available:

On Master only:

No

Known bugs:

No

Description

This effect/filter converts an equirectangular frame (panoramic) to a rectilinear frame (what you are used to seeing). Can be used to preview what will be shown in a 360 video viewer.

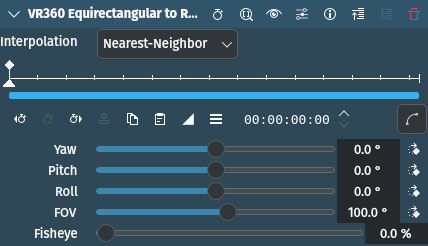

Parameters

Parameter	Value	Description
Interpolation	Selection	Choose the interpolation algorithm
Yaw	Degree	Defines the direction of view left or right
Pitch	Degree	Defines the direction of view up or down
Roll	Degree	Defines the direction of view like tilting your head left or right
FOV	Degree	The horizontal field of view, in degrees, of the resulting frame. Any value over 179 results in a fisheye projection.
Fisheye	Percent	The amount of fisheye to mix in. 100% means that you get a 100% fisheye lens.

The following selection items are available:

Interpolation

Nearest-Neighbor	default
Bilinear

---

[1]

Parts of this documentation have been taken from the website of the filter's developer bigsh0t.
