VR360 Rectilinear to Equirectangular

VR360 Rectilinear to Equirectangular

Status:

Maintained

Keyframes:

Yes

Source library:

frei0r

Source filter:

bigsh0t_rect_to_eq[1]

Available:

On Master only:

No

Known bugs:

No

Description

This effect/filter converts a rectilinear (a normal-looking) image to an equirectangular image. Use this together with VR360 Transform to place “normal” footage in a 360 movie. It is the opposite of the VR360 Equirectangular to Rectilinear effect.

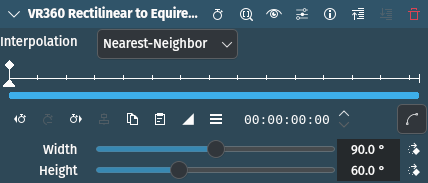

Parameters

Parameter	Value	Description
Interpolation	Selection	Choose the interpolation algorithm
Width	Degree	Determines the vertical FOV[2]
Height	Degree	Determines the horizontal FOV[2]

The following selection items are available:

Interpolation

Nearest-Neighbor	default
Bilinear

---

[1]

Parts of this documentation have been taken from the website of the filter’s developer bigsh0t.

[2] (1,2)

FOV = Field of view (in degrees)
