UI Elements¶

Controls¶

UI Element	Description
1 collapse/expand	Collapses or expands a section of the user interface
2 check box	Used to select an optional element or feature
3 drop-down list box	Allows to select from a list of possible values
4 toolbar icons	Various action icons specific to the panel. See below for the icons.
5 hamburger menu	Opens a fly-out menu with more options
6 spinner	Used to increase or decrease a value one step at a time
7 direct entry	Used to enter a specific value. In most cases it is possible to use the `Mouse wheel` to increase or decrease the value.
8 button	Used to enable a certain state while it is pushed in. Click again to make it come out.
9 slider	Allows for rapid changes of values. Drag the mouse left or right to move the slider. The value in an adjacent direct entry field is changed accordingly.
10 action button	Used to change a value in defined steps. Every click changes the value, wrapping at the end of the scale may occur.
11 action icon	Used to execute an action that is not repeatable (with exceptions)

UI Element	Description
1 edit frame	[Project Monitor only] Identifies the object or area of the effect. Edit Mode needs to be enabled for the frame to show.
2 edit frame handles	Used to change the size (square handles) and move the frame (circle in the middle)
3 monitor overlay	Hover over the defined hot spot (default: top right-hand side) to reveal the list of icons
4 playhead	Indicates the position in the timeline or clip
5 timeline zone	Indicates the timeline zone set with `I` and `O` or by clicking and , respectively
6 zoom bar	Used to zoom the timeline. Grab the white handles on either end and drag them left or right, or use `Ctrl+Mouse wheel` while hovering over the monitor timeline.
7 audio level meter	Displays the audio level of the project or clip when playback is running
8 options drop-down	Opens a list of options to select from
9 timecode	Shows the current position of the playhead in the notation hh:mm:ss:ff, where hh is hours, mm is minutes, ss is seconds and ff is frame.
10 tab (active)	Currently active widget
11 tab (inactive)	Available widgets in that section of the work layout

Element	Description
[A] Effect panel header	Contains the name of the effect and the collapse icon and the effect panel toolbar
[B] Effect parameters	Contains all the parameters for controlling the effect
[C] Normal parameters	Contains all parameters that are not keyframable
[D] Keyframe panel	Contains the time ruler, the keyframes and the keyframe action icons
[E] Keyframable parameters	Contains all parameters that can be keyframed[1]
[A1]	Name of the effect
[A2]	Effect toolbar (for icons see below)
[D1]	Keyframes; red color is selected; a diamond shape denotes a linear keyframe, a square a discreet and a circle a smooth keyframe.
[D2]	Keyframe action icons (for actions see below)
[E1]	Position and Size action icons (for actions see below)

Element	Description

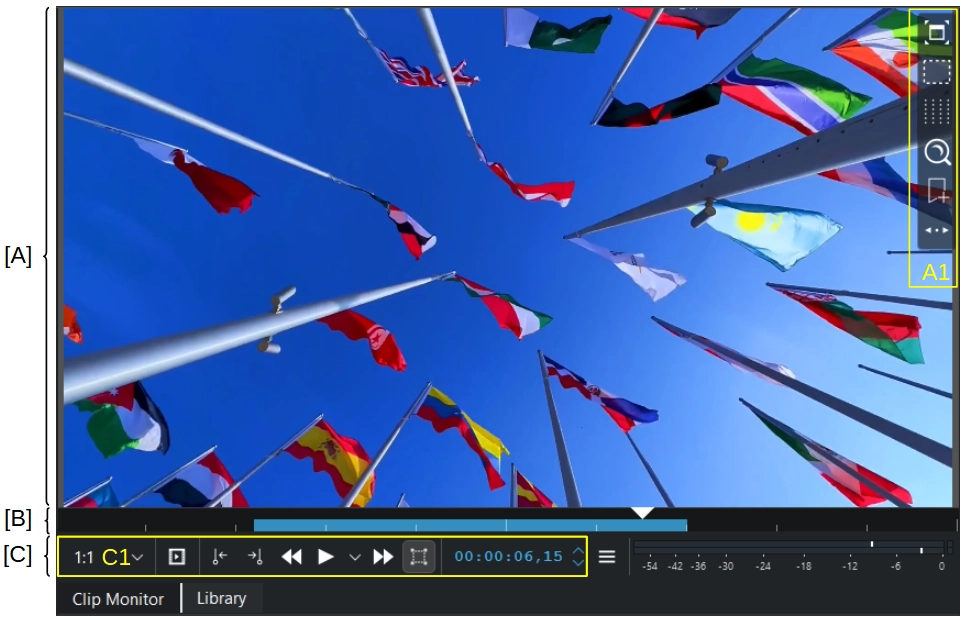

[A] Monitor area	This is where the clip playback is shown and where effects can be changed (only in the project monitor, if possible with the effect, and Edit Mode is switched on)
[B] Monitor time ruler	Shows the timeline for the project or clip where the current frame is indicated by the playhead or caret. A zoom bar and/or a timeline zone is displayed here if set.
[C] Monitor toolbar	Contains controls/actions for the clip or project monitor widget
[A1] Monitor overlay	Monitor overlay selection panel (for icons see below)
[C1] Monitor controls/actions	For icons see below

Icon	Description
	Show keyframes in timeline on/off
	Enable/disable effect
	Open the advanced effect menu
	Save current settings as new defaults for this effect
	Move effect down one level. Changes the sequence effects are applied.
	Move effect up one level. Changes the sequence effects are applied.
	Delete effect from effect stack

Icon	Description
	Jump to the previous keyframe
	Add a keyframe at the current position of the playhead/caret
	Jump to the next keyframe
	Remove the keyframe at the current position of the playhead/caret. If multiple keyframes are selected, all selected keyframes are deleted.
	Move selected keyframe to cursor/playhead/caret
	Copy selected keyframe(s)
	Paste keyframe(s)
	Keyframe is of type ‘linear’ (interpolation towards this keyframe is linear)
	Keyframe is of type ‘discreet’ (no interpolation between the previous and this keyframe)
	Keyframe is of type ‘smooth’ (interpolation towards this keyframe is slightly dynamic with ease-in and ease-out with a little overshoot)
	Opens the keyframe options window

Icon	Description
	Align the object frame to the left edge
	Center the object frame horizontally
	Align the object frame to the right edge
	Align the object frame to the top edge
	Center the object frame vertically
	Align the object frame to the bottom edge
	Zoom object frame to original size
	Zoom object frame to best fit the project dimensions and center it
	Zoom object frame to best fit the width of the project dimensions
	Zoom object frame to best fit the height of the project dimensions

Icon	Description
	[Clip Monitor only] Insert the zone into the project bin
1:1	Set preview resolution
	Set the Inpoint at the current position of the playhead
	Set the Outpoint at the current position of the playhead
	Play backwards
	Play; Play options
	Fast forward
	[Project Monitor only] Toggle Edit Mode
	Monitor options menu
	Switch full screen
	Change overlay. Click through the different available patterns.
	Zoom in
	Zoom out
	Add guide
	Remove guide
	Move toolbar. Click through to move the toolbar from the right (default) to the left and back.

Icon	Description
	Timeline settings
	Timeline zone on/off
	Select tool
	Razor tool
	Spacer tool
	Slip tool
	Ripple tool
	Mix clips (same track transition)
	Insert clip zone in timeline
	Overwrite clip zone in timeline
	Extract timeline zone
	Lift timeline zone
	Favorite effects
	Start preview render
	Preview render options
	Audio mixer
	Edit subtitle tool

Icon	Description
	Add clip or folder; open add source dialog
	Create folder
	Delete (selected) clip(s)/folder(s)
	Open Tags panel
	Filter; open filter selection

Icon	Description
	Display color tags in the timeline
	Show video thumbnails
	Show audio thumbnails
	Show markers comments
	Snap
	Zoom to fit project
	Zoom out
	Zoom in
