Detección de bordes

Edge Detection

Status:

Mantenido

Keyframes:

No

Source library:

avfilter

Source filter:

edgedetect

Available:

On Master only:

No

Known bugs:

No

Color depth:

10bit

Tutorial:

No

Descripción

This effect/filter detects and draws edges using the Canny edge detection algorithm[1].

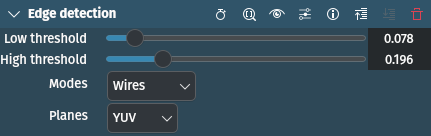

Parámetros

Parámetro	Valor	Descripción
Umbral inferior / superior	Decimal	Set low and high threshold values used by the algorithm. The High threshold selects the «strong» edge pixels, which are then connected through 8-connectivity with the «weak» edge pixels selected by the Low threshold. Range is from 0.000 to 1.000 with Low threshold being lower or equal to High threshold.
Modos	Selección	Define the drawing mode
Planos	Selección	Select the planes for filtering

The following selection items are available:

Modos

Líneas	Draw white/gray wires on black background (default)
Mezcla de color	Mix the colors to create a paint/cartoon effect
Perceptivo	Applies Canny edge detector on all selected planes

Planos

Ninguno
Y/U/V	Also combinations of the planes are possible. Default is YUV.
Alfa

---

[1]

For more details refer to the Canny edge detector article in Wikipedia.
