DataScope¶
Description
This effect/filter analyses the video data and shows hexadecimal pixel values of parts of the video.

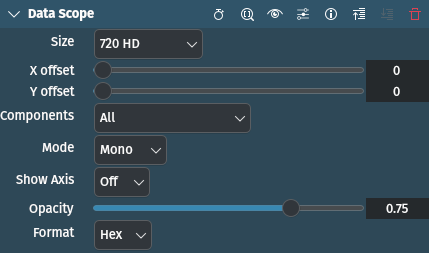

Parameters
Parameter |
Value |
Description |
---|---|---|
Size |
Selection |
Set output video size |
X / Y Offset |
Integer |
Set the x / y offset from where to pick the pixels |
Mode |
Selection |
Set scope mode [1] |
Show Axis |
Selection |
If set to On, draws rows and columns numbers on left and top of video. Default is Off. |
Opacity |
Float |
Set background opacity [1] |
Format |
Selection |
Set display number format [1] |
The following selection items are available:
Size
128p |
|
360p |
|
PAL SD |
|
NTSC SD |
|
480p |
|
720HD |
default |
1080FullHD |
|
2K |
|
4K |
Mode
mono |
Draw hexadecimal pixel values with white color on black background (default) |
color |
Draw hexadecimal pixel values with input video pixel color on black background |
color2 |
Draw hexadecimal pixel values on color background picked from input video, the text color is picked in such way so its always visible |
Format
Hex |
Hexadecimal notation (default) |
Dec |
Decimal notation |
