Oscilloscope¶
Description
This effect/filter creates a 2D video oscilloscope overlay. Useful to measure spatial impulse, step responses, chroma delays, etc. If you need more parameters to control, use the Oscilloscope (advanced) effect.

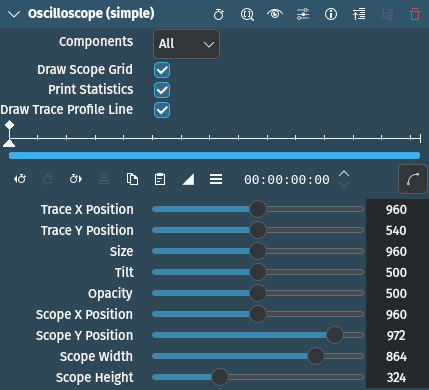

Parameters
Parameter |
Value |
Description |
|---|---|---|
av.x / av.y |
Float |
Set scope center x / y position |
av.s |
Float |
Set scope size, relative to frame diagonal |
av.t |
Float |
Set scope tilt/rotation |
av.o |
Float |
Set scope opacity |
av.tx / av.ty |
Float |
Set trace center x /y position |
av.tw / av.th |
Float |
Set trace width / height, relative to width / height of frame |
av.c |
Integer |
Set which components to trace. By default it traces YUV components. |
Components Matrix
av.c Value |
Component |
|---|---|
0 |
None |
1 |
Y |
2 |
U |
3 |
YU |
4 |
V |
5 |
YV |
6 |
UV |
7 (default) |
YUV |
8..15 |
repeat |
