Histogram

kdenlive2304_effects-histogram

Description

This effect/filter computes and draws a color distribution histogram for the input video as an overlay to the clip. Below each graph a color component scale meter is shown.

See also the Histogram widget in the Menu d'affichage.

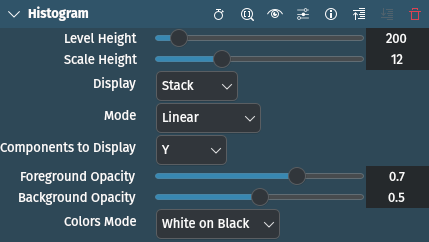

Parameters

Parameter

Value

Description

Level height

Integer

Set height of level. Allowed range is from 50 to 2048, default value is 200.

Scale height

Integer

Set height of color scale. Allowed range is from 0 to 40, default value is 12

Display

Selection

Set display mode

Mode

Selection

Set mode

Components to display

Selection

Set what color components to display

Foreground Opacity

Float

Set foreground opacity [1]. Default is 0.7.

Background Opacity

Float

Set background opacity [1]. Default is 0.5

The following selection items are available:

Display

Overlay

Stack

default

Parade

Mode

Linear

default

Logarithmic

Components to display

All

Y

default (luma)

U

YU

V

YV

UV

All

(sic)

Alpha
