Data Scope¶

Description

This effect/filter analyses the video data and shows hexadecimal pixel values of parts of the video.

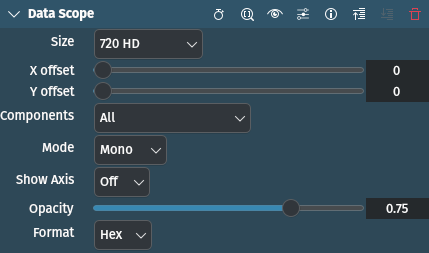

Parameters

Parameter	Value	Description
Size	Selection	Set output video size
X / Y Offset	Integer	Set the x / y offset from where to pick the pixels
Components	Selection	Set pixel components to display. By default all pixel components are displayed.
Mode	Selection	Set scope mode
Show Axis	Selection	If set to On, draws rows and columns numbers on left and top of video. Default is Off.
Opacity	Float	Set background opacity[1]
Format	Selection	Set display number format

The following selection items are available:

Size

Components

Mode

Mono	Draw hexadecimal pixel values with white color on black background (default)
Color	Draw hexadecimal pixel values with input video pixel color on black background
Color2	Draw hexadecimal pixel values on color background picked from input video, the text color is picked in such way so its always visible

Format

Hex	Hexadecimal notation (default)
Dec	Decimal notation
