Oscilloscope (simple)¶
Description
This effect/filter creates a 2D video oscilloscope overlay. Useful to measure spatial impulse, step responses, chroma delays, etc. If you need more parameters to control, use the Oscilloscope (advanced) effect.

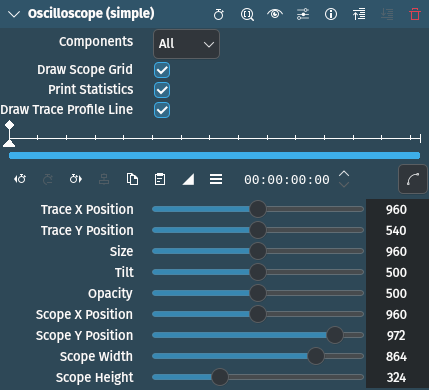

Parameters
Parameter |
Value |
Description |
|---|---|---|
Components |
Selection |
Set which components to trace. By default it traces All components (YUV). |
Draw Scope Grid |
Switch |
Set scope size, relative to frame diagonal |
Print Statistics |
Switch |
Set scope size, relative to frame diagonal |
Draw Trace Profile Line |
Switch |
|
Trace X Position |
Integer |
Set trace center X position |
Trace Y Position |
Integer |
Set trace center Y position |
Size |
Integer |
Set scope size, relative to frame diagonal |
Tilt |
Integer |
Set scope tilt/rotation |
Opacity |
Integer |
Set scope opacity |
Scope X Position |
Integer |
Set scope center X position |
Scope Y Position |
Integer |
Set scope center Y position |
Scope Width |
Integer |
Set trace width, relative to width of frame |
Scope Height |
Integer |
Set trace height, relative to height of frame |
The following selection items are available:
Components
None |
|
Y (Luminance) |
|
U (Chroma red-diff) |
|
YU |
|
V (Chroma blue-diff) |
|
YV |
|
UV |
|
All |
Default |
Alpha |
