Izvleček kanala BLUE (modra) / GREEN (zelena) / RED (rdeča)

Channel Extractor B / G / R

Stanje:

Vzdrževano

Ključne sličice:

Ne

Izvorna knjižnica:

MLT

Izvorni filter:

B / G / R

Na voljo:

Samo na glavni:

Ne

Znani hrošči:

Ne

Opis

Ti trije ločeni učinki iz posnetka izvlečejo ustrezne barvne kanale. Dodatnih parametrov ali ključnih sličic ni.

These filters essentially isolate the individual color channels (red, green, blue) from the clip and generate a greyscale image where the intensity represents the specific color channel. The result can be used for color analysis (understanding the distribution of colors in the clip), further image processing (using the greyscale as a mask), or segmentation (separating objects based on their color characteristics).

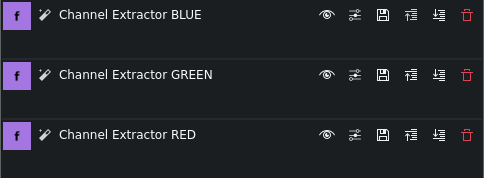

You typically put the same clip in three adjacent tracks in the timeline, add the effect to each clip (one for RED, one for GREEN, and for one BLUE), and then add additional effects to create the desired (artistic) look.

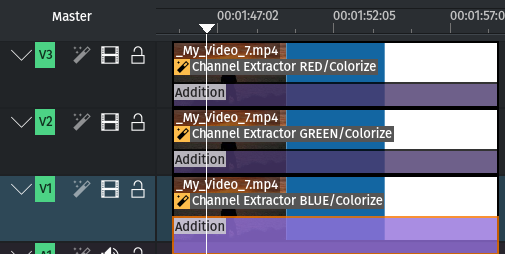

Example of bringing a clip back together after using Channel Extractor

In order to bring the channels back together, use either the Addition composition or the Cairo blend composition with Composition Type Add between the two top tracks, and one added to the bottom track.

Posnetki zaslona

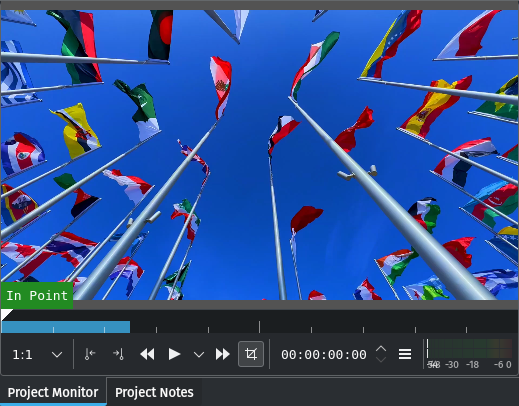

Izvirni posnetek

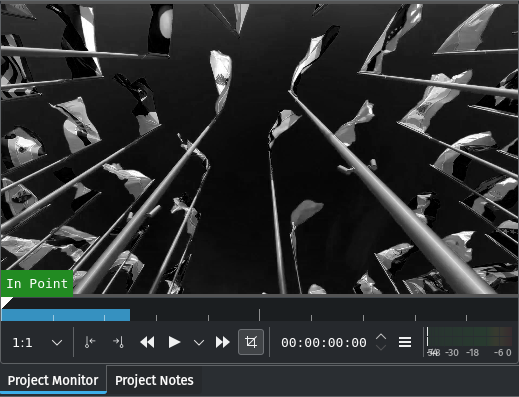

Rezultat Izvlečka kanala RED (rdeča)

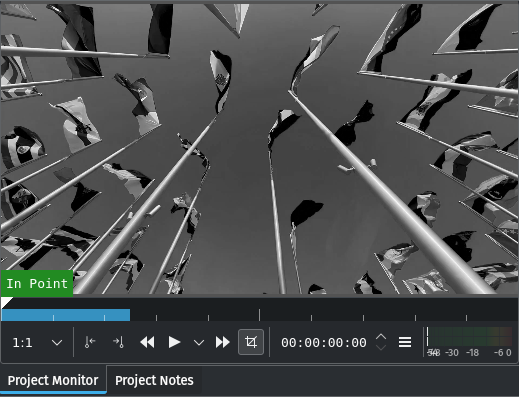

Rezultat Izvlečka kanala GREEN (zelena)

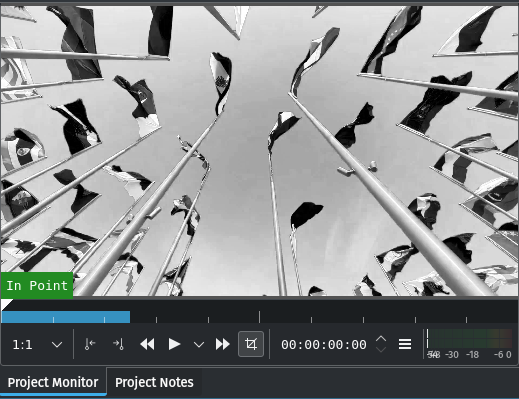

Rezultat Izvlečka kanala BLUE (modra)
