CIE Scope
描述
This effect/filter displays a CIE color diagram with overlaid input pixels.
小訣竅
The effect uses the pixel format of the clip it is applied on in compositing. By default, CIE Scope just displays the scope, so if you want to overlay it on the clip itself, you need to put the clip in the track below. If that clip does not have an alpha channel, the scope will not overlay but obscure the clip below. You can add an 透明度形狀 effect to the clip, set the operations mode to Min, and adjust the size of the rectangle to the scope dimensions and thus get the CIE Scope to overlay the clip.
參數
參數 |
數值 |
描述 |
|---|---|---|
Color System |
Selection |
Set color system to use |
CIE System |
Selection |
Set CIE system to use |
Gamuts to Draw |
Selection |
Set what gamuts to draw |
Size |
整數 |
Set CIE Scope size, by default set to 512. |
強度 |
浮點數 |
Set intensity used to map input pixel values to CIE diagram |
Contrast |
浮點數 |
Set contrast used to draw tongue colors that are out of active color system gamut |
顯示正確 Gamma |
Switch |
Correct gamma displayed on scope, by default enabled |
顯示最亮點 |
Switch |
Show white point on CIE diagram, by default disabled |
輸入 Gamma |
浮點數 |
Set input gamma. Used only with xyY input color space. |
Fill with CIE Colors |
Switch |
Fill with CIE colors, by default enabled. |
可以使用以下選項：
Color System[1], Gamuts to Draw
NTSC |
American standard for color TV. For the color space relevance, refer to this page in Wikipedia. |
BT.470M |
Same as NTSC |
EBU |
Color space used by the European Broadcasting Union (basically BT.601) |
BT.470BG |
|
SMPTE |
Color space used by the Society of Motion Picture and Television Engineers (SMPTE) |
BT.240M |
|
Apple |
Color space as defined by Apple RGB[1] |
Wide RGB |
Wide Gamut RGB[2] as defined by Adobe |
CIE 1931 |
Color space as defined by CIE[3] |
HD TV |
Using the YCbCr color model (Rec. 709) |
Rec. 709 |
Same as HD TV |
UHD TV |
Using the YCbCr color model (Rec. 2020) |
Rec. 2020 |
Same as UHD TV |
DCI-P3 |
Color space defined by DCI[4] |
CIE System[1]
xyY |
Using the CIE xyY[5] color space (derived from CIE XYZ). |
UCS |
CIE 1960 UCS[6] color space |
LUV |
CIELUV[7] (abbreviation for CIE 1976 L*, u*, v) |
範例

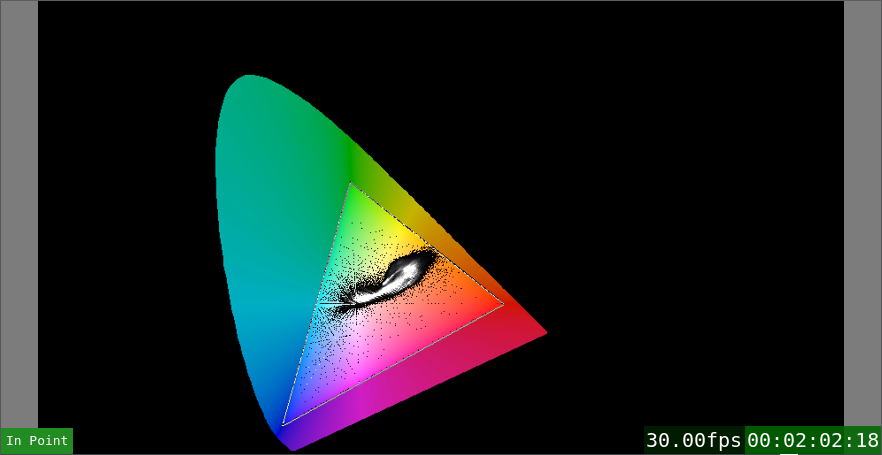

CIE Scope Example 1 - Default settings
This shows the CIE Scope effect with the default settings. Depending on your source material the pixel distribution will look differently.

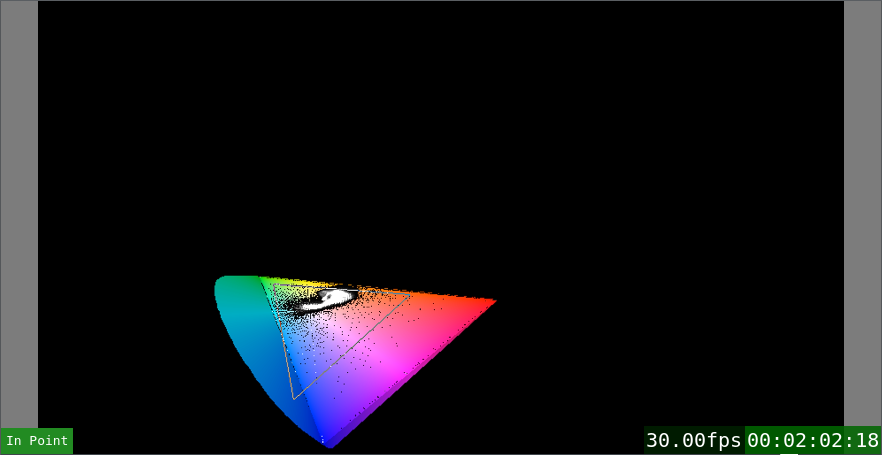

CIE Scope Example 2
This shows the CIE Scope effect with the following settings:

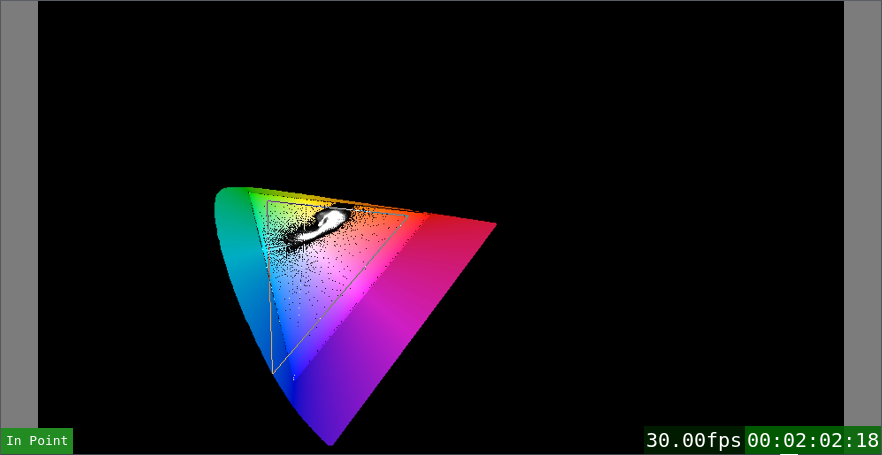

CIE Scope Example 3
This shows the CIE Scope effect with the following settings:
Color System: BT.470MCIE System: LUVGamuts to Draw: Apple
