Gate Weave

Gate Weave

Status:

Maintained

Keyframes:

Yes

Source library:

frei0r

Source filter:

vertigo

Available:

On Master only:

No

Known bugs:

No

Description

Randomly moves frame around to simulate film gate weave. For other film effects see also Film Grain, Dust, Scratchlines, and the vignette effects (Vignette, Vignette Effect).

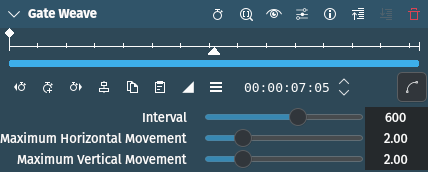

Parameters

Parameter	Value	Description
Interval	Integer	The amount of time before the position is randomized again. The larger the number the slower the picture will move.
Maximum Horizontal Movement	Float	The maximum distance the picture could move left or right. The larger the number the more the picture moves and the less subtle the effect. Maximum is 10, but it takes fractions (results in subtle pixel color mixes).
Maximum Vertical Movement	Float	The maximum distance the picture could move up or down. The larger the number the more the picture moves and the less subtle the effect. Maximum is 10, but it takes fractions (results in subtle pixel color mixes).
