Data Scope¶

Popis
This effect/filter analyses the video data and shows hexadecimal pixel values of parts of the video.

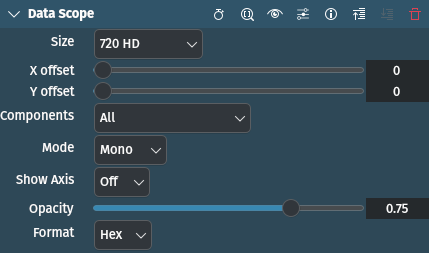

Parametry
Parametr |
Hodnota |
Popis |
---|---|---|
Velikost |
Výběr |
Set output video size |
Posun X / Y |
Celé číslo |
Set the x / y offset from where to pick the pixels |
Components |
Výběr |
Set pixel components to display. By default all pixel components are displayed. |
Režim |
Výběr |
Set scope mode |
Zobrazit osy |
Výběr |
If set to On, draws rows and columns numbers on left and top of video. Default is Off. |
Krytí |
Desetinné číslo |
Set background opacity[1] |
Formát |
Výběr |
Set display number format |
Jsou dostupné následující položky pro výběr:
Size
128p |
|
360p |
|
PAL SD |
|
NTSC SD |
|
480p |
|
720 HD |
výchozí |
1080 Full HD |
|
2K |
|
4K |
Components
None |
|
Y (Luminance) |
|
U (Chroma red-diff) |
|
YU |
|
V (Chroma blue-diff) |
|
YV |
|
UV |
|
All |
Default |
Alpha |
Mode
Mono |
Draw hexadecimal pixel values with white color on black background (default) |
Color |
Draw hexadecimal pixel values with input video pixel color on black background |
Color2 |
Draw hexadecimal pixel values on color background picked from input video, the text color is picked in such way so its always visible |
Format
Hex |
Hexadecimal notation (default) |
Dek |
Decimal notation |
