Oscilloscope (advanced)
Popis
This effect/filter draws a 2D oscilloscope over the clip. It does the same as Oscilloscope (simple) but offers more parameters and features, such as drawing a line across the frame that is used for the computations.

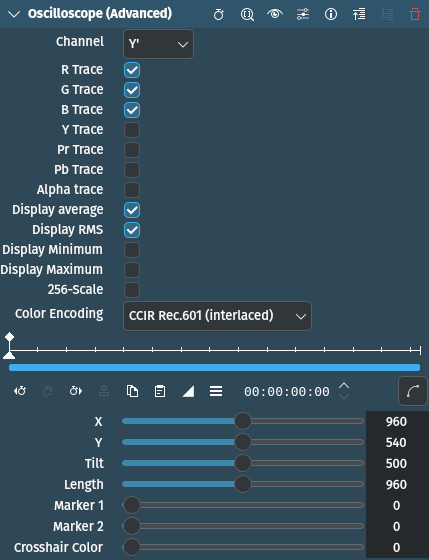

Parametry
Parametry |
Hodnota |
Popis |
|---|---|---|
Kanál |
Výběr |
Channel to numerically display at the bottom of the scope |
R / G / B trace |
Přepnout |
Show R / G / B trace on scope |
Y / Pr / Pb trace |
Přepnout |
Show Y‘ / Pr / Pb trace on scope |
Vykreslit alfa kanál |
Přepnout |
Show Alpha trace on scope |
Zobrazit průměr |
Přepnout |
If switched on, averages are displayed |
Zobrazit hodnotu |
Přepnout |
If switched on, the RMS[1] value is displayed |
Display minimum / maximum |
Přepnout |
If switched on, minimum and maximum values are displayed |
256 měřítko |
Přepnout |
If switched on, the oscilloscope uses the range 0..255 instead of 0.0..1.0 for value display |
Barva |
Výběr |
Set color space to use |
X / Y / Tilt / Length |
Celé číslo |
X / Y position, Tilt and Length of the profile marker (the line in the middle of the screen indicating where the scope values are taken from) |
Značka 1 / 2 |
Celé číslo |
Position of marker 1 / 2 (starting on the left side) |
Barva nitkového kříže |
Celé číslo |
Color of the profile marker |
Jsou dostupné následující položky pro výběr:
Channel
R |
Červená |
G |
Zelená |
B |
Modrá |
Y‘ |
luma (default) |
Pr |
Difference between red and luma |
Pb |
Difference between blue and luma |
Alfa |
Alfa kanál |
Color
CCIR rec. 601 |
výchozí |
CCIR rec. 709 |
