Oscilloscope (simple)


Popis

This effect/filter creates a 2D video oscilloscope overlay. Useful to measure spatial impulse, step responses, chroma delays, etc. If you need more parameters to control, use the Oscilloscope (advanced) effect.

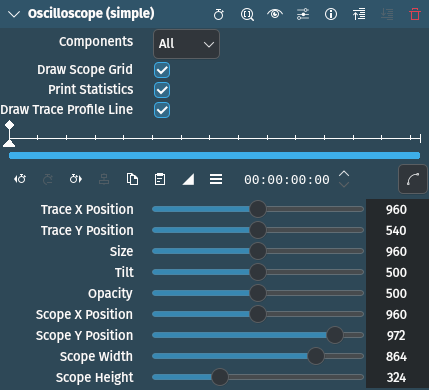

Parametry

Parametr

Hodnota

Popis

Components

Selection

Set which components to trace. By default it traces All components (YUV).

Draw Scope Grid

Switch

Set scope size, relative to frame diagonal

Print Statistics

Switch

Set scope size, relative to frame diagonal

Draw Trace Profile Line

Switch

Trace X Position

Celé číslo

Set trace center X position

Trace Y Position

Celé číslo

Set trace center Y position

Size

Celé číslo

Set scope size, relative to frame diagonal

Tilt

Celé číslo

Set scope tilt/rotation

Opacity

Celé číslo

Set scope opacity

Scope X Position

Celé číslo

Set scope center X position

Scope Y Position

Celé číslo

Set scope center Y position

Scope Width

Celé číslo

Set trace width, relative to width of frame

Scope Height

Celé číslo

Set trace height, relative to height of frame

The following selection items are available:

Components

Nic

Y (Luminance)

U (Chroma red-diff)

YU

V (Chroma blue-diff)

YV

UV

All

Default

Alpha
