Draw Grid

Draw Grid

Status:

Maintained

Keyframes:

Yes

Source library:

avfilter

Source filter:

drawgrid

Available:

On Master only:

No

Known bugs:

No

Description

This effect/filter draws a colored grid on the input video.

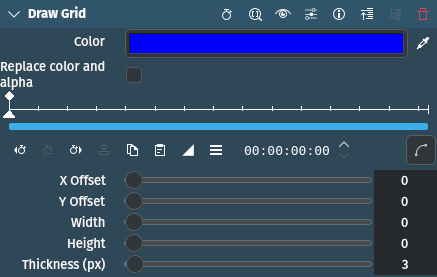

Parameters

Parameter	Value	Description
X / Y	Integer	Defines the starting point of the grid in pixels from the top left-hand corner of the monitor (coordinates are based on the project dimension settings)
Width	Integer	Defines the distance between vertical grid lines in pixels
Height	Integer	Defines the distance between horizontal grid lines in pixels
Thickness	Integer	Defines the thickness of the line in pixels. If set high enough the grid is filled.
Color	Picker	Defines the color for the grid

Hint

This effect can be used in combination with the Chroma Key: Basic or Chroma Key: Advanced effects to create interesting transitions by animating the number of grid lines and their thickness.
