GPS Graphic

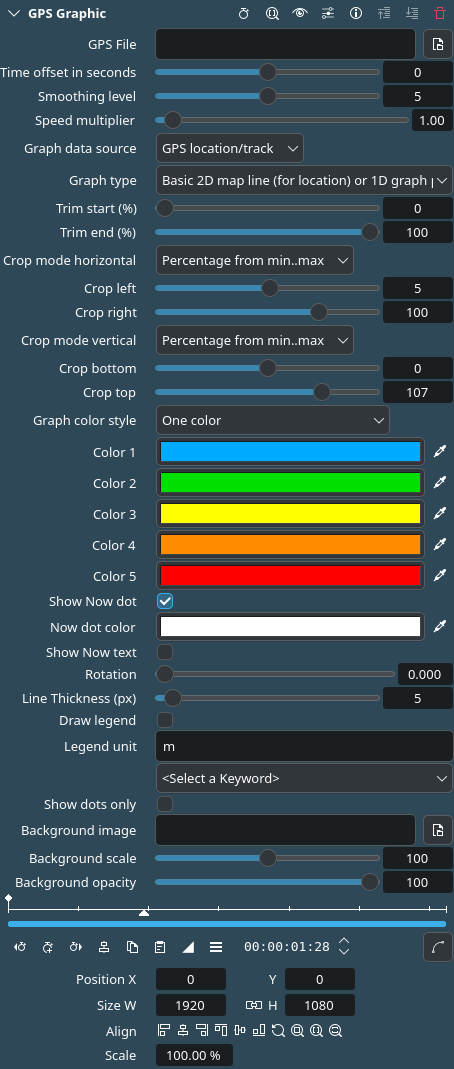

effects-gps_graphic_2412

Description

This effect/filter overlays GPS-related graphics onto the video.

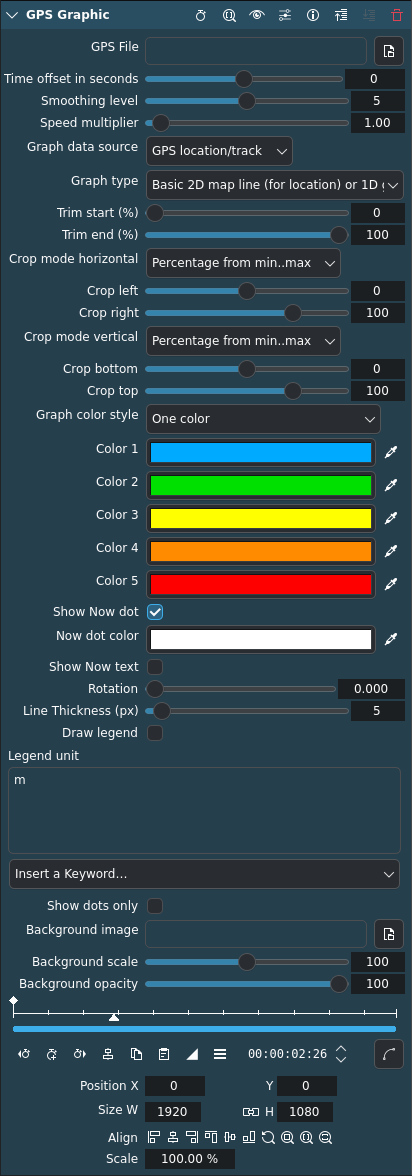

Parameters

Parameter

Value

Description

GPS File

Open file

Select a file with the GPS data. Supported formats are .gpx and .tcx.

Time offset in seconds

Integer

An offset in seconds to be added to the video file to match it to the GPS track. Most of the time this will at least need to be set to the timezone difference between the two files plus some seconds if the video recording device isn’t precisely set to correct time. GPS time is always exact and in UTC[1]. Use positive values if GPS is ahead of video and negative otherwise.

Smoothing level

Integer

How many GPS points to smooth in order to eliminate GPS errors. A value of 1 does not smooth locations, it only calculates the extra fields (speed, distance, etc) it also interpolates missing values for heart rate and altitude.

Speed multiplier

Float

If the video file is a timelapse (or slow motion), use this value to set the speed up/slow down ratio. Sample values: 30 for 30x timelapse, 0.25 for 4x slow motion footage.

Graph data source

Selection

What data from the GPS file is used for drawing. Options are GPS location/track (default), Altitude (if available), Heart rate (if available), Speed (always available, computed from location)

Graph type

Selection

How to draw the selected data. Options are Basic 2D map line (for location) or 1D graph per time (others), Zoom in onto the map/graph and centers around the current location[2], Draw a speedometer (available for all data sources but recommended only for speed; for the map type it represents the “percentage done” from trimmed start - end)

Trim start

Percent

Trim data from the start of the GPS file (as a percentage of total). Note: both Trim start and Trim end are computed from the total file so trimming 50% start and 50% end will result in trimming the entire file.

Trim end

Percent

Trim data from the end of the GPS file (as a reversed percentage of total, ie: 100 means no trim, 50 means half of total file, 5 means trim 95% of the file). Note: both Trim start and Trim end are computed from the total file so trimming 50% start and 50% end will result in trimming the entire file.

Crop mode horizontal

Switch

Decides how to interpret the Crop left and Crop right values: Percentage from min..max, or Absolute value (ie: it can crop between 22.2 and 22.3 degrees of longitude)[3]

Crop left

Float

Crops data from the left side of the graph (effectively zooming in). The value is interpreted either as a percentage of total or an absolute value depending on Crop mode horizontal. In percentage mode the values are not restricted to 0-100 to allow for “zoom out” behavior (ie: cropping -50 left will add an extra half of the total horizontal distance). Values over 100 (in % mode) will effectively not display anything. If Graph type is Speedometer, all crop left/right values are ignored.

Crop right

Float

Same as Crop left but for the right side and percentage type is interpreted as an inverse percentage (ie: 100 = do not crop anything). Values under 0 will effectively not display anything.

Crop mode vertical

Switch

Decides how to interpret the Crop top and Crop bottom values: Percentage from min..max, or Absolute value (ie: it can zoom in to between 100 and 150m of altitude to show small changes in altitude between those 2 values better)[4]

Crop bottom

Float

Crops data from the bottom side of the graph (effectively zooming in). The value is interpreted either as a percentage of total or an absolute value depending on Crop mode vertical. In percentage mode the values are not restricted to 0-100 to allow for “zoom out” behavior (ie: cropping -50 bot will add an extra half of the total vertical distance to the bottom). Values over 100 (in % mode) will effectively not display anything. If Graph type is speedometer, this will set the minimum needle position which will clamp all values that are lower.

Crop top

Float

Same as Crop bottom but for the top side and percentage type is interpreted as an inverse percentage (ie: 100 = do not crop anything). Values under 0 will effectively not display anything.

Graph color style

Selection

Chooses one of nine styles to draw the graph line (options see below)

Show Now dot

Switch

Enable it to draw a disc at the current location/time over the graph line. If graph type is speedometer, this affects the needle.

Now dot color

Picker

Choose the outer circle color of the now dot disc. The size of this circle is the same as the line thickness. The inside of the disc is always white. If the alpha value of the color is 0 (default) this will use the same color as the nearby (or past) line (including for gradient types) thus effectively making it change color in time.

Show Now text

Switch

Enable it to draw the current value in big white bold letters on the bottom right side of the rect. The legend_unit value will be appended at the end and it will be used as the current unit (if a valid unit is found ie: kilometers if “km” is found anywhere in the legend_unit string).

Rotation

Float

Rotate the entire graph rect. For speedometer type the text stays horizontal.

Line Thickness (px)

Integer

Sets the thickness of the line graph in px

Draw legend

Switch

If enabled it will draw 5 horizontal (and vertical for map type) lines with small values each corresponding to the current data source value at 0%, 25%, 50%, 75% and 100% of current graph shown, affected by the legend_unit type if applicable and with the string appended to the value. For Graph type Speedometer this shows division values (but without appending unit).

Legend unit

Text field

Select the unit of measure for the data to be displayed from the list below. You can add additional text in this field.

Show dots only

Switch

If enabled, the graph will be drawn using individual dots instead of lines. This will effectively show the individual data points as affected by Smoothing (ie: for location data it will display each GPS fix if smoothing is 1) and can either be used as a cool effect when zoomed in enough or to debug unexpected line jumps.

Background image

File selection

Opens an image file that is used as a background for the GPS graphic

Background scale

Float

Scale the background image (relative to center) to match it to the above GPS track. Values smaller than 1 zoom into the image, values larger than 1 zoom out. 0 hides it.

Background opacity

Float

Sets the opacity of the background image

Colours

Picker

Sets the colors of the graph line

The following options for Graph color style are available:

One color

Same color and size for the entire graph

Two colors

Same as Solid Past or Solid Future but the entire line is the same thickness

Solid past - thin future

From the beginning of the graph to the current position (=”past”) it will be drawn using the 1st color and chosen thickness, but for the “future” part of the graph it will use the 2nd color and thickness will be 2px (or 1px if main thickness is below 3)

Solid future - thin past

Same as above, just reversed

Vertical gradient

The line will be coloured as a vertical gradient relative to the entire rect area

Horizontal gradient

Same as above, just horizontal

Color by duration

The selected colors will be used as a gradient, in chronological order (except for location source, this will effectively be a left to right gradient for 1D graphs)

Color by altitude

The selected colors will be used as a gradient from the minimum altitude value from file to the maximum one, not affected by crops or trim

Color by heart rate

The selected colors will be used as a gradient from the minimum heart rate value from file to the maximum one

Color by speed

Same as above but gradient is affected by smoothing
