Video Values¶
Description
This effect/filter draws and overlays a window in the clip that shows a zoomed version of the area covered by a small crosshair, and specific values of the covered area of the video stream.

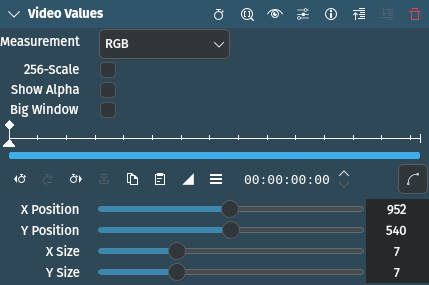

Parameters
Parameter |
Value |
Description |
|---|---|---|
Measurement |
Selection |
Select what will be measured. |
256-Scale |
Switch |
Use the scale 0..256 instead of 0.0..1.0 (default) |
Show Alpha |
Switch |
Show the Alpha channel |
Big Window |
Switch |
Show a bigger version of the video values window |
X Position
Y Position
X Size
Y Size
|
Integer |
Set the position and the size of the crosshair (determines the area covered and analyzed).
For size values above 16 switch on Big Window.
|
The following selection items are available:
Measurement
RGB |
default |
Y’PbPr - Rec.601 |
|
Y’PbPr - Rec.709 |
|
HSV |
Hue, Saturation, Value |
HSL |
Hue, Saturation, Luma |
