CIE ScopeΒΆ
Description

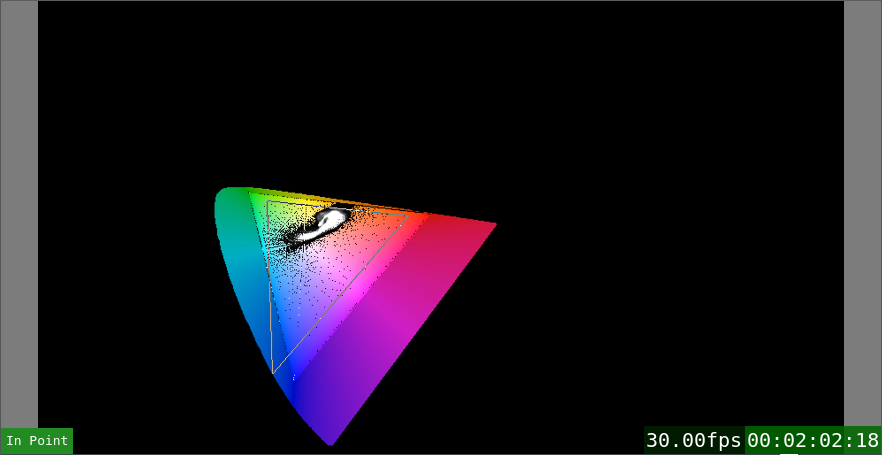

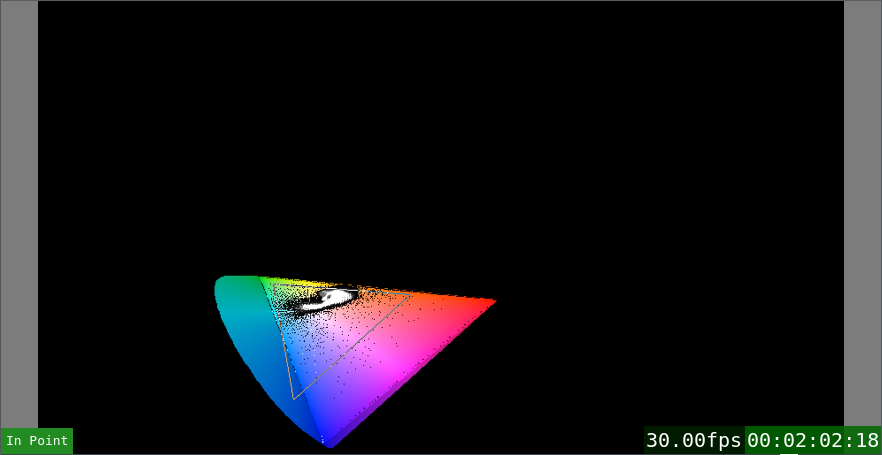

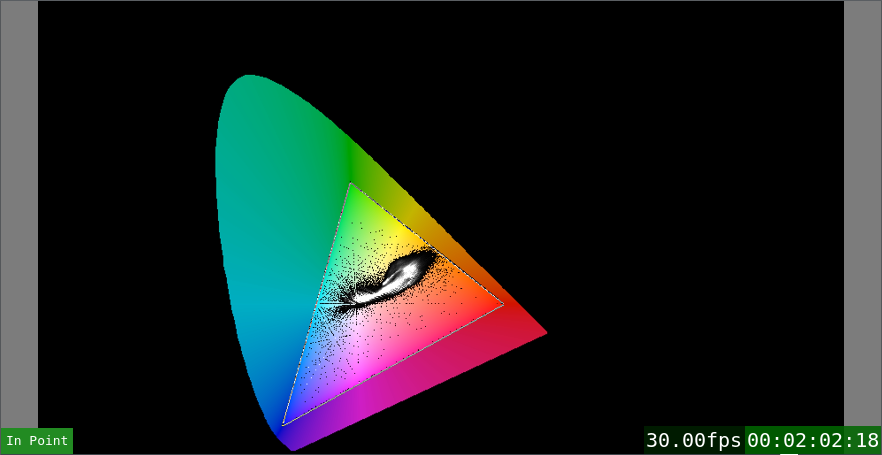

This effect/filter displays a CIE color diagram with overlaid input pixels.

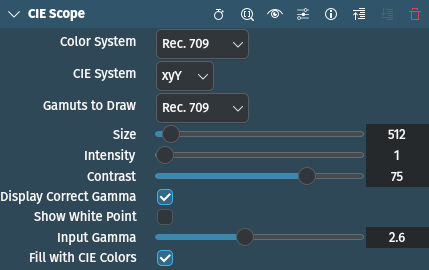

Parameters
Parameter |
Value |
Description |
|---|---|---|
av.size / av.s |
Integer |
Set CIE Scope size, by default set to 512. [1] |
av.intensity / av.i |
Float |
Set intensity used to map input pixel values to CIE diagram [2] |
av.contrast |
Float |
Set contrast used to draw tongue colors that are out of active color system gamut |
av.gamma |
Float |
Correct gamma displayed on scope, by default enabled [3] |
