Kreslit mřížku

Draw Grid

Stav:

Udržováno

Klíčové snímky:

Ano

Knihovna zdrojů:

avfilter

Filtr zdrojů:

drawgrid

Dostupné:

On Master only:

Ne

Známé chyby:

Ne

Popis

This effect/filter draws a colored grid on the input video.

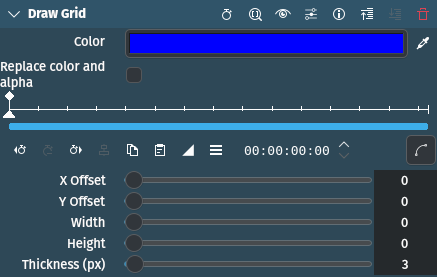

Parametry

Parametr	Hodnota	Popis
Barva	Kapátko	Defines the color for the box
Replace color and alpha	Přepnout	If the input has alpha, checking this will overwrite the video’s color and alpha pixels with the pixels of the painted box. By default (off), the box will be composited onto the input, leaving the video’s alpha intact.
Posun X / Y	Celé číslo	Defines the starting point of the grid in pixels from the top left-hand corner of the monitor (coordinates are based on the project dimension settings)
Šířka	Celé číslo	Defines the distance between vertical grid lines in pixels
Výška	Celé číslo	Defines the distance between horizontal grid lines in pixels
Thickness (px)	Celé číslo	Defines the thickness of the line in pixels. If set high enough, the grid is essentially filled.

Rada

This effect can be used in combination with the Klíčování: Základní or Chroma Key: Advanced effects to create interesting transitions by animating the number of grid lines and their thickness.
