Chroma Key: Advanced¶

Popis

This effect is a more advanced version of the Chroma Key: Basic effect. It allows for some basic feathering (by changing the Edge Mode) and much more fine-grained control over how much and in which way you remove the background.

This is better for backgrounds that have less contrast with the foreground or for more complex backgrounds. For simple (uniform) backgrounds (such as green, blue, red or possibly black), use the Chroma Key: Basic effect.

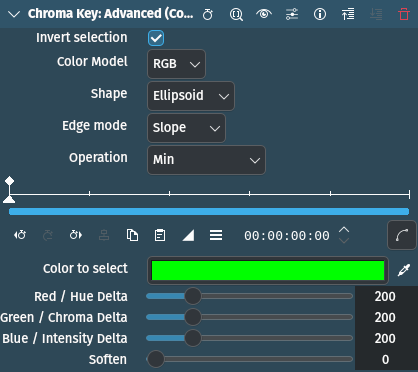

Parametry

Parametr	Hodnota	Popis
Obrátit výběr	Přepnout	When ON (default), the selected color will be transparent. When OFF the selected color will be opaque. Keeping the selected color opaque may be more effective if the foreground is simple and the background is complicated.
Color Model[1]	Výběr	These different options yield different results. While RGB should yield the sharpest and best results, sometimes the other options HCI and ABI can yield much better results than RGB. So if RGB is not producing good results, try one of the other options.
Tvar	Výběr	Determines the shape for subspace selection
Edge Mode	Výběr	Determines the amount of feathering
Operace	Výběr	Determines how the alpha channel is processed
Barva na výběr	Kapátko	The color to select. This is the color that will be transparent or the only color that is opaque depending on the setting for Invert selection.
Red/Hue Delta Green/Chroma Delta Blue/Intensity Delta	Celé číslo	These three parameters determine the tolerance of the chroma keying. The higher the value, the more of the background is removed; the lower the value, less is removed. A bit of experimenting is required to find the correct values for each clip.
Rozmazat	Celé číslo	This slider determines the smoothness of the edges. The higher the value, the smoother the edges of your color selection will be. Only works if Edge mode is set to Slope.

Jsou dostupné následující položky pro výběr:

Color Model[1]

RGB	Červená Modrá Zelená
ABI	Advanced Baseline Imager
HCI	Hue Chromacity Intensity

Tip

These different options yield different results. While RGB should yield the sharpest and best results, sometimes the other options HCI and ABI can yield much better results than RGB. So if RGB is not producing good results, try one of the other options.

Poznámka

Previews of video clips that were chroma keyed using HCI will be slow since values for every single pixel have to be calculated. Either lower the Project Monitor playback resolution or use the Preview Render function.

Shape

Hranol	Uses a box to select the pixels leaving no space between them
Elipsoid	Uses an ellipsoid to select pixels leaving some space between them
Diamant	Uses a diamond shape to select pixels leaving space between them

Box is the most thorough selection method, and Diamond the one with the largest gaps.

Edge Mode

Těžká	No feathering (edges are not smooth at all). Any part of the image/video is either fully opaque and fully transparent. This means there will be none of the selected color between the removed parts and the remaining parts whatsoever. This option is useful if your chroma key turned out to be perfect.
Fat
Normální
Skinny
Sklon	Allows to use the Soften slider

The options Fat, Normal and Skinny create a gradual transition between transparent and opaque. The fatter the choice, the more the selected areas are filled towards the rim (more feathering for fatter choices). This is useful if your color selection did not turn out that well.

Jsou dostupné následující položky pro výběr:

Write on clear
Maximum
Minimum
Přidat
Odečíst

Basic Technique

Find a clip with a background (preferably multiple, or slightly complex, because the Klíčování: Základní effect can do easy backgrounds such as green or blue). Add the Chroma Key: Advanced effect to the clip.

Now either choose the color using the color palette by clicking on the colored bar. Or use the little pipette button and then click in the Project Monitor on the background part of the clip you want to remove. Adjust the Delta sliders until the background is removed correctly. This might need some experimenting. If you find it is not removing the background well try changing the Color Model and experiment again. If you experimented and cycled through all the Color Models, and the background is still not removed properly then it is probably too complicated for Kdenlive to remove. At this point, you will most likely need to use Rotoskopie.

If the effect took lots of time to experiment, and you want to use this effect again, then click on the document-save Save effect icon. Give the effect a name and a comment and click on Ok. Your custom Chroma Key: Advanced effect will be saved in the Custom effect category from where you can use it just like any other effect.

Poznámky

Viz také

Chroma Key: Basic which also does color-based alpha selection, but is a bit simpler.
