Apply LUT


Description

This effect applies a 3D Look Up Table (LUT)[1] to the clip. A LUT is an easy way to adjust the color tone of a video, and therefore is mostly used for color grading. It is important to note that if your clips do not match from clip to clip or shot to shot, are not properly exposed or not (yet) color corrected, applying a LUT will not work the way one hoped it would.

Supported formats

  • .3dl (AfterEffects)

  • .cube (Iridas)

  • .dat (DaVinci)

  • .m3d (Pandora)

Parameters

Parameter

Value

Description

LUT file to apply

File selection

File containing the LUT to be applied. Select Custom… to open a file dialog window to browse for additional LUT files. You can also download LUT files from the KDE Store directly from here by clicking on the edit-download icon. See the Notes section below.

Interpolation Mode

Selection

Selects the mode for interpolation

The following selection items are available:

Interpolation Mode

Nearest

Trilinear

Tetrahedral

(default)

Example

For the example we are using the Tahoe.cube LUT file. You can download LUTs from many places on the internet, like freshluts.com or smallhd.com. Put the downloaded files in a directory or folder that can be reached easily from within Kdenlive. For example, you may have a media stock folder and want to create a similar one for your LUT files.

This is the after and before view:

kdenlive2304_effects-apply_lut_example_3

Project Monitor showing the clip with LUT applied, Clip Monitor the unaltered clip

To apply the LUT follow these simple steps:

  1. In the Effects tab open the Color and Image Correction category and select the Apply LUT effect. Assign it to the clip in the timeline

  2. Open the LUT file to apply drop-down and select Custom

  3. Navigate to the folder with the LUT file(s) you downloaded

  4. Select the LUT file you want and click Open

kdenlive2304_effects-apply_lut_example_1

Apply LUT effect with default settings[2]

kdenlive2304_effects-apply_lut_example_2

Apply LUT file selection dialog

Note that this example shows an individual video editing directory structure with a folder for stock media containing a folder for LUTs. Your mileage may vary …

kdenlive2304_effects-apply_lut_example_4

Apply LUT effect with Tahoe.cube LUT file applied[2]

Of course, you can add other effects from the Color and Image Correction category to further adjust or correct the colors. A good rule of thumb is “less is more”.

You can find more about color correction and color grading in the Tutorial section of the documentation.

Notes

Kdenlive has a direct connection to the KDE Store to download LUT files other users uploaded there. Of course it requires a working Internet connection.

Click on the edit-download icon and a window opens listing all available LUT files.

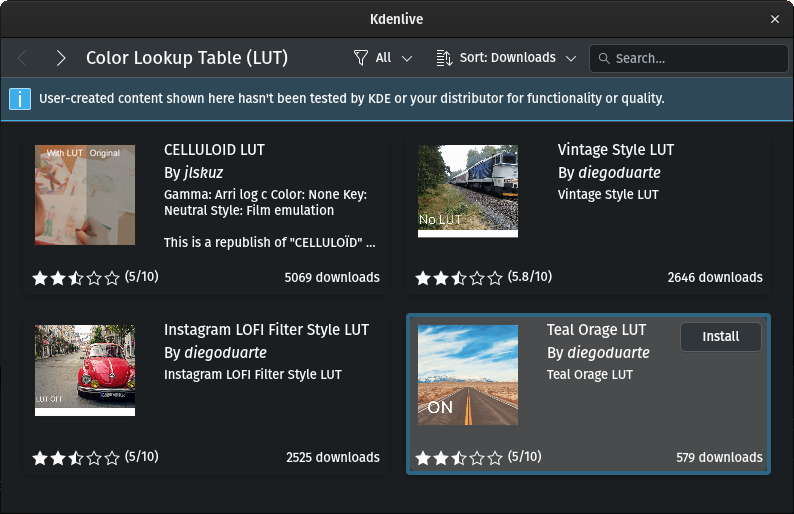

LUT files available in the KDE Store

You can use filters (view-filter) to select all available LUTs, installed ones, and those for which an update is available.

Use view-sort to sort by name, rating, downloads (default), or release date.

Use the Search field to search for a LUT file by name.

Click on Install to install the selected LUT file(s).

Click on the highlighted tile to get more information about the selected LUT.

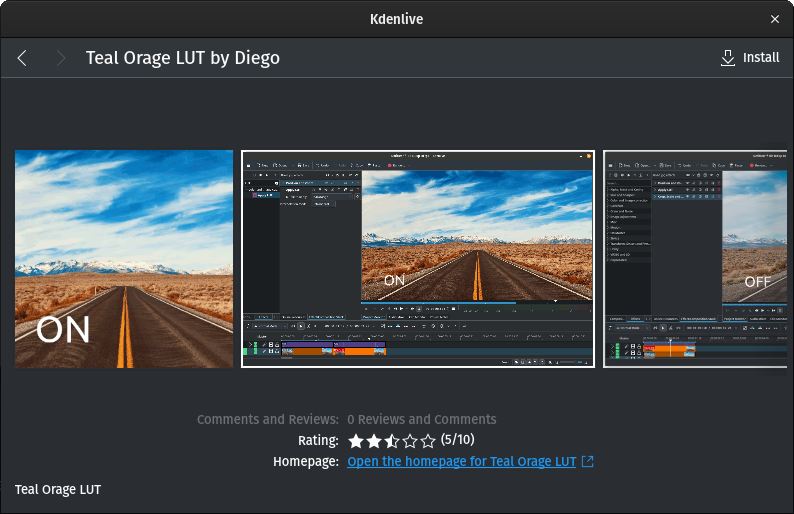

More details about the selected LUT

Here you see more details and some examples (provided the author has uploaded images).

Clicking the link opens a browser and the respective KDE Store page for the LUT file.

Click on Install to download and install the selected LUT file.
