Shear

Shear

Status:

Maintained

Keyframes:

Yes

Source library:

avfilter

Source filter:

shear

Available:

On Master only:

No

Known bugs:

Yes (see warning)

Description

This effect/filter applies a shear transformation to the clip.

The effect has keyframes but only for the Background fill color.

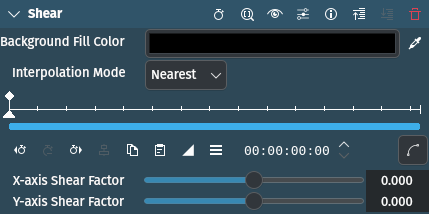

Parameters

Parameter	Value	Description
X shear factor	Integer	Set the shear factor. Range is from -2 to 2.
Y shear factor	Integer	Set the shear factor. Range is from -2 to 2.
Interpolation mode	Selection	Set the interpolation mode
Background fill color	Picker	Set the background fill color if the shear reveals the background. Default is black

The following selection items are available:

Interpolation mode

Nearest	default
Bilinear

Warning

As of this writing and version 23.04 the shear parameters are integer values, not float, hence the very much limited use of the effect. A bug report has been created. Until this is fixed use the Rotate and Shear effect.
