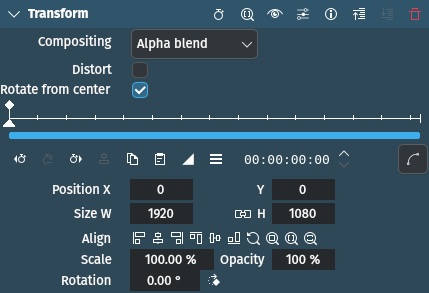

Trasforma¶
Descrizione
Questo effetto/filtro permette allo stesso tempo la trasformazione e il compositing della clip
Parametri
Parametro |
Valore |
Descrizione |
---|---|---|
Compositing |
Selezione |
Definisce quali operazioni di compensazione verranno eseguite. Vedi sotto per le opzioni disponibili. |
Distorci |
Interruttore |
Se spuntato permette l’allungamento non uniforme della clip |
Ruota dal centro |
Interruttore |
Se spuntato elabora la rotazione dal centro, diversamente è dall’angolo in alto a sinistra |
Dimensione X / Y / L / H |
Varie |
This is where the action is for the transformation |
Rotazione |
Intero |
Angolo per la rotazione. Un clic su on the rotate icon incrementa il valore di 90 gradi. Dopo aver raggiunto 360 riparte da -360 e ad ogni clic continua a contare in avanti. |
Sono disponibili le seguenti voci di selezione:
Compositing[1]
Fusione alfa |
È l’attributo predefinito che specifica nessuna fusione. La formula di fusione seleziona semplicemente il colore sorgente. |
Più |
|
Xor |
|
Moltiplica |
The source color is multiplied by the destination color and replaces the destination. The resultant color is always at least as dark as either the source or destination color. Multiplying any color with black results in black. Multiplying any color with white preserves the original color. |
Schermo |
Multiplies the complements of the backdrop and source color values, then complements the result. The result color is always at least as light as either of the two constituent colors. Screening any color with white produces white; screening with black leaves the original color unchanged. The effect is similar to projecting multiple photographic slides simultaneously onto a single screen. |
Sovrapponi |
Multiplies or screens the colors, depending on the backdrop color value. Source colors overlay the backdrop while preserving its highlights and shadows. The backdrop color is not replaced but is mixed with the source color to reflect the lightness or darkness of the backdrop. |
Scurisci |
Selects the darker of the backdrop and source colors. The backdrop is replaced with the source where the source is darker; otherwise, it is left unchanged. |
Schiarisci |
Selects the lighter of the backdrop and source colors. The backdrop is replaced with the source where the source is lighter; otherwise, it is left unchanged. |
Colore scherma |
Brightens the backdrop color to reflect the source color. Painting with black produces no changes. |
Colore brucia |
Darkens the backdrop color to reflect the source color. Painting with white produces no change. |
Luce intensa |
Multiplies or screens the colors, depending on the source color value. The effect is similar to shining a harsh spotlight on the backdrop. |
Luce soffusa |
Darkens or lightens the colors, depending on the source color value. The effect is similar to shining a diffused spotlight on the backdrop. |
Differenza |
Subtracts the darker of the two constituent colors from the lighter color. Painting with white inverts the backdrop color; painting with black produces no change. |
Esclusione |
Produces an effect similar to that of the Difference mode but lower in contrast. Painting with white inverts the backdrop color; painting with black produces no change. |
OR binario |
|
AND binario |
|
XOR binario |
|
NOR binario |
|
NAND binario |
|
NOT xor binario |
|
Destination in |
|
Destination out |
- Binario:
The top track’s alpha controls interpolation between the lower track and the combined tracks
- Destinazione:
Can be used as a mask where overlapping non transparent pixels are drawn or not
