Dibujar cuadrícula

Draw Grid

Estado:

Mantenido

Animable:

Sí

Biblioteca de origen:

avfilter

Filtro de origen:

drawgrid

Disponible:

Sólo en pista Maestra:

No

Errores conocidos:

No

Descripción

Este efecto permite dibujar una cuadrícula de color sobre la imagen de un clip.

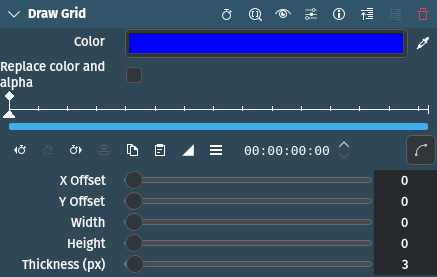

Parámetros

Parámetro	Valor	Descripción
Color	Selector	Permitirá definir el color de la cuadrícula
Reemplazar color y alfa	Interruptor	If the input has alpha, checking this will overwrite the video’s color and alpha pixels with the pixels of the painted box. By default (off), the box will be composited onto the input, leaving the video’s alpha intact.
Desplazamiento X / Y	Integer	Defines the starting point of the grid in pixels from the top left-hand corner of the monitor (coordinates are based on the project dimension settings)
Ancho	Integer	Defines the distance between vertical grid lines in pixels
Altura	Integer	Defines the distance between horizontal grid lines in pixels
Grosor (px)	Integer	Defines the thickness of the line in pixels. If set high enough, the grid is essentially filled.

Consejo

This effect can be used in combination with the Recorte por croma: Básico or Recorte por croma: Avanzado effects to create interesting transitions by animating the number of grid lines and their thickness.
