Oscilloscope (simple)

Oscilloscope (simple)

Status:

Mantenido

Keyframes:

No

Source library:

avfilter

Source filter:

oscilloscope

Available:

On Master only:

No

Known bugs:

No

Color depth:

10bit

Tutorial:

No

Descripción

This effect/filter creates a 2D video oscilloscope overlay. Useful to measure spatial impulse, step responses, chroma delays, etc. If you need more parameters to control, use the Osciloscopio (avanzado) effect.

Parámetros

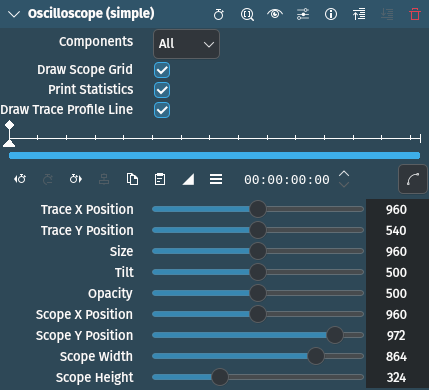

Parámetro	Valor	Descripción
Components	Selection	Set which components to trace. By default it traces All components (YUV).
Draw Scope Grid	Switch	Set scope size, relative to frame diagonal
Print Statistics	Switch	Set scope size, relative to frame diagonal
Draw Trace Profile Line	Switch
Trace X Position	Selección	Set trace center X position
Trace Y Position	Selección	Set trace center Y position
Size	Selección	Set scope size, relative to frame diagonal
Tilt	Selección	Set scope tilt/rotation
Opacity	Selección	Set scope opacity
Scope X Position	Selección	Set scope center X position
Scope Y Position	Selección	Set scope center Y position
Scope Width	Selección	Set trace width, relative to width of frame
Scope Height	Selección	Set trace height, relative to height of frame

The following selection items are available:

Components

.
Y (Luminance)
U (Chroma red-diff)
.
V (Chroma blue-diff)
.
.
All	Default
Alpha
