Nabídka Pohled

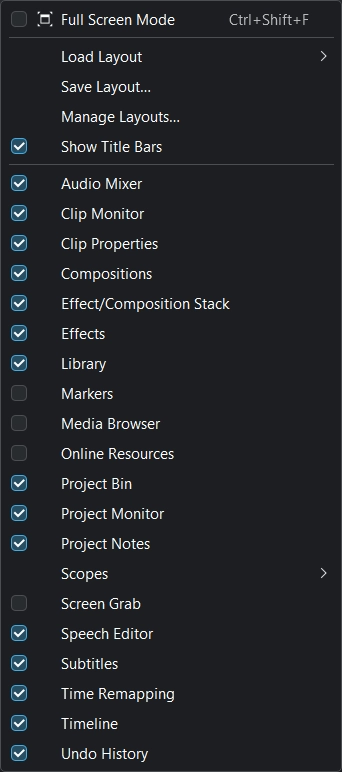

The View Menu controls the widgets that appear on screen, and is used for managing screen layouts.

Use the navigation on the left to go to the various menu items

kdenlive2304_view_menu

Kdenlive View Menu

Full Screen Mode toggles the main window of Kdenlive in and out of full screen mode.

Please note: This is not to be confused with F11 which toggles the Project or Clip Monitor in and out of full screen mode.

Show Title Bars toggles the display of the title bars of the various widgets on and off. Turn it off if you need more real estate on your screen. For some widgets you need titlebars to move them around.

../../_images/kdenlive_show_titles01.webp

Titulkový pruh

../../_images/kdenlive_show_titles02.webp

No Title Bar

Najít činnost

This is a new feature since version 22.04. It allows you to search for any command or action available. Simply enter the search and then select the command or action you want to execute. Kdenlive uses fuzzy search or look-ahead search, so that every character you type changes the search result on the fly.

kdenlive23.04_find_action

Kdenlive Find Action

Načíst rozvržení

This function lets you switch to a previously saved custom workspace layout. More details are available in the Rozvržení pracovní plochy section of this documentation.


Loading a workspace layout

Once you load a saved layout that layout will remain the current one when starting Kdenlive until you switch to another saved layout or modify the current one. If you do make changes to a custom layout after loading it and then quit Kdenlive, you will not be prompted to save your changes to the named layout. The changes will be remembered and applied the next time you launch Kdenlive, but be aware that you are now working with an unnamed layout. If you like the layout and want to preserve it, save it back to the original name or save it as a new name.

Uložit rozvržení

This function allows you to save the workspace layout.

kdenlive_save_layout01

Saving the current workspace layout

In the example shown, no custom layouts have been saved yet so they are just labeled 1 through 4. Click Save Layout As and then choose one of the four choices presented.

kdenlive_save_layout02

Naming the saved layout

The Save Layout dialog appears and you can give your custom layout a name.

Spravovat rozvržení

This function allows you to manage the saved workspace layouts.

kdenlive2304_manage_layouts

Kdenlive Manage Layouts function

You can delete, re-arrange, reset, import and export the saved layouts.

Orientace dokovací oblasti

This function controls how Kdenlive arranges the workspace layout:

  • Arrange Dock Areas in Columns - Widgets can be stacked like washing machine and dryer at both ends of the screen and scaled vertically independent from the screen split between the Timeline and the area above

  • Arrange Dock Areas in Rows - Widgets can be put next to each other and scaling them horizontally does not affect the widgets in the row above them.

See the Customizing the Interface for more details and an illustration.

Zvukový směšovač

Switches the Audio Mixer widget on or off.

kdenlive2304_audio_mixer

Kdenlive Audio Mixer widget

This is the main tool for audio handling. It shows all audio tracks and a master volume.

For more details please refer to the Zvukový směšovač section of the documentation.

Spektrum audia

Switches the Audio Spectrum widget on or off.

kdenlive2304_audio_spectrum

Kdenlive Audio Spectrum widget

This allows you to monitor the audio properties of your clip in detail. The graph only displays data while the clip is playing in the clip or project monitor.

It graphs the loudness of the audio in decibels (vertical axis) for each audio frequency (horizontal axis) in the current frame.

Monitor klipu

Switches the Clip Monitor widget on or off.

Vlastnosti klipu

Switches the Clip Properties widget on or off.

kdenlive2304_clip_properties

Kdenlive Clip Properties widget

The Clip Properties widget displays the properties of the selected clip. You can change some of the properties.

For more details see the chapter Clip Properties.

Kompozice

Switches the Compositions widget on or off.

kdenlive2304_compositions

Kdenlive Compositions widget

The Compositions widget lists all compositions available in Kdenlive.

You can drag a composition from the list and drop it on a clip in the Timeline.

Effects/Composition Stack

Switches the Effects/Composition Stack on or off.

The Effects/Composition Stack shows all effects applied to a clip or a track. This is where you make changes to the effect settings. See the Effects/Composition Stack section of this documentation for more details.

Efekty

Switches the Effects widget on or off.

kdenlive2304_effects

Kdenlive Effects widget

The Effects widget lists all the effects available in Kdenlive. It has groups for effect types (audio, video), custom effects, favorite effects and an option to download effects from KDE Store.

You can drag an effect from this list and drop it on a clip in the Timeline, the Project Bin or on the Effect Stack.

More details about effects are available in the Effects and Filters section of this documentation.

Vodítka

Switches the Guides widget on or off.

Guides and Markers are a powerful tool to speed up your workflow. More details about them in the Vodítka section of the documentation.

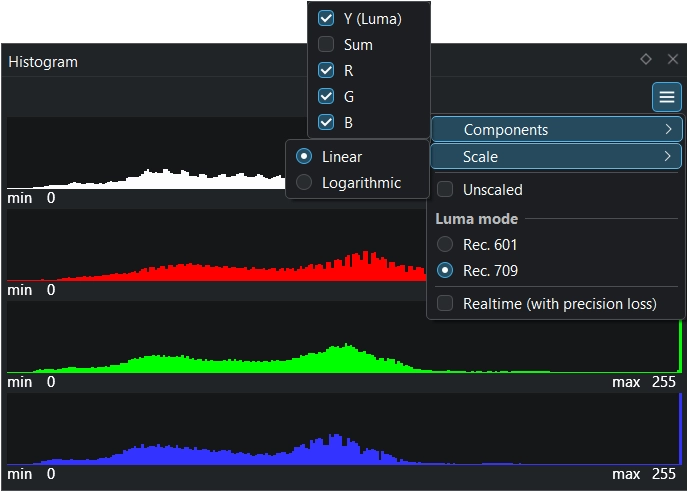

Histogram

Switches the Histogram widget on or off.

Histogram

Kdenlive Histogram widget

This scope displays a frequency histogram of the luminance of the color components of the video. This information is useful when used in combination with color correction effects to perform color correction on the video. Color correction includes increasing the brightness or adjusting the white balance to ensure that white remains white and not blue.

The histograms have the luminance on the horizontal axis going from 0 on the left to 255 on the right. The vertical axis represents the count of the total number of pixels in the current video frame with a given luminance.

For more information read the Tips & Tricks chapter about How the Histogram Works in the section about Rozsahy.

See also the Histogram video effect.

Knihovna

Switches the Library widget on or off.

kdenlive2304_library

Kdenlive Library widget

The Library holds items for generic use in projects. For example watermarks, logos, lower-thirds, intros, and so on. Please refer to the Library section of this documentation for more details.

Prohlížeč médií

Switches the Media Browser widget on or off.

kdenlive2304_media_browser

Kdenlive Media Browser widget

The Media Browser allows you to easily navigate your file system and add clips to your project. For more details refer to the Media Browser section of this documentation.

Zdroje Online

Switches the Online Resources widget on or off.

kdenlive2304_online_resources

Kdenlive Online Resources widget

The Online Resources widget allow you to include assets from various online media providers like Pixabay or Pexels in your project.

Zásobník projektu

Switches the Project Bin widget on or off.

kdenlive2304_project_bin

Kdenlive Project Bin widget

The Project Bin is the place where Kdenlive lists all the clips (video, audio, titles, images) or assets associated with the project. For more details refer to the Project Bin section of this documentation.

New in 23.04: Sequences (needed for nested timelines). For more details please see the Sequences section of the documentation.

Monitor projektu

Switches the Project Monitor on or off.

The Project Monitor is used to display your project’s timeline, i.e. the edited version of your video. In Edit Mode you can directly manipulate certain effects from within the Project Monitor. Please refer to the Project Monitor section of this documentation for more details.

Poznámky k projektu

Switches the Project Notes widget on or off.

kdenlive2304_project_notes

Kdenlive Project Notes widget

Project Notes can be used to keep notes about your project, like ideas or things to do. Please refer to the Project Notes section of this documentation for more details.

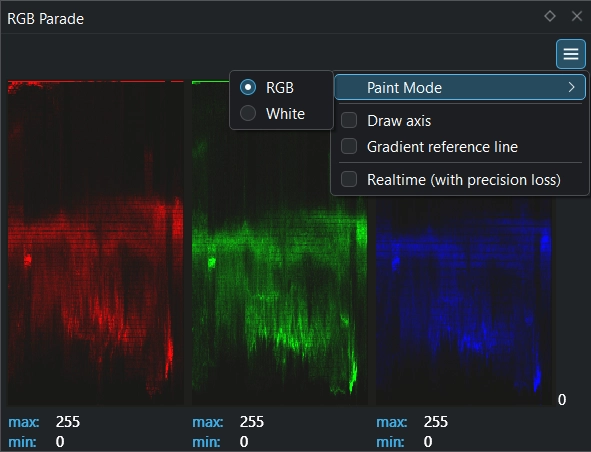

RGB přehlídka

Switches the RGB Parade widget on or off.

kdenlive2304_rgb_parade

Kdenlive RGB Parade widget

The RGB Parade widget displays a histogram of the RGB components of the video data.

The horizontal axis represents the timeline in the video frame. The vertical axis is the pixel luminance from 0 to 255. The brightness of the point on the graph represents the count of the number of pixels with this luminance in this column of pixels in the video frame.

More details including a more thorough explanation is available in the Tips & Tricks chapter about Waveform and RGB Parade in the section about Rozsahy.

See also the RGB přehlídka video effect.

Zachycení obrazovky

Switches the Screen Grab widget on or off.

Poznámka

This function has issues and should not be used. It has not been maintained for a while. There are other tools and applications for screen recording or grabbing available, hence this function will most likely be deprecated.

Editor řeči

Switches the Speech Editor widget on or off.

kdenlive2304_speech_editor

Kdenlive Speech Editor widget

The Speech Editor widget allows you to use AI-based speech recognition to create subtitles for your video. You need to configure speech-to-text in Kdenlive in order to use this. More details about the configuration and potentially necessary installations as well as how to use speech recognition is available in the Speech-to-Text section of this documentation.

Titulky

Switches the Subtitle widget on or off.

kdenlive2304_subtitles

Kdenlive Subtitles widget

The Subtitle widget is used to manage the subtitles for your project. For more details please refer to the Subtitles section of this documentation.

Time Remapping

The Time Remapping widget allows you to create speed ramping.

kdenlive2304_time_remapping

Kdenlive Time Remapping widget

More details are available in the Time Remapping section of this documentation.

Časová osa

Switches the Timeline on or off.

The Timeline is the central part of Kdenlive where you put together your video. A more detailed description is available in the Časová osa section of this documentation.

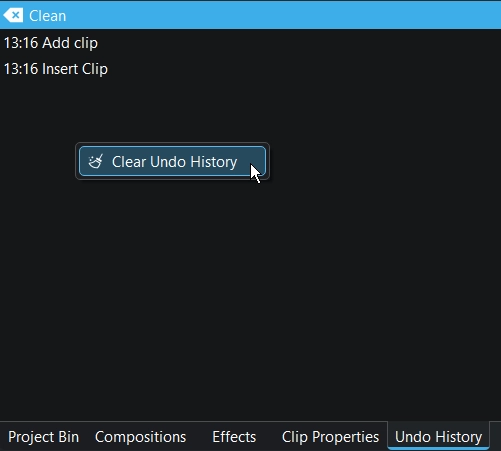

Historie činností

Switches the Undo History widget on or off.

The Undo History shows all the operations performed so far and allows to quickly restore your project to the state it was in several changes ago.

kdenlive2304_undo_history

Kdenlive Undo History widget

There may be times when you want to quickly restore your project to the state it was in several changes ago. Instead of repeatedly executing single undo operations, it might be more efficient to jump right to the operation in question – if you could easily locate it.

Obrázek 1

That is where View ‣ Undo History comes in. It opens a dockable window which lists all the changes made to your project in the order they were made. When a project file is first opened the window looks like Figure 1.

Obrázek 2

Each operation you perform from then on gets added to the list, as shown in Figure 2. Notice that the most recent operation you have performed is highlighted.

Obrázek 3

In this example, if you wanted to undo the last three operations with one click all you have to do is click on the Create color clip entry and those three changes will be reversed in one fell swoop. At this point if you are unhappy with undoing those changes you can easily redo them by clicking on any of the entries which are still in the list.

Obrázek 4

However, if you decided that reverting to that Create color clip entry looked good and you then made another change to the project the three remaining operations that were in the list in Figure 3 will be flushed from the buffer and be no longer available. They will be replaced by the new operation you just performed. See the result in Figure 4.

Obrázek 5

Whenever you save your project the icon that looks like the backspace icon is repositioned next to the most recent operation in the list. Figure 5 shows three additional operations which were performed after the file save shown by the square. After saving the file you can still revert back to changes which were made before the save.

Vektorskop

Switches the Vectorscope widget on or off.

kdenlive2304_vectorscope

Kdenlive Vectorscope widget

The Vectorscope widget allows you to monitor the colour properties of your clip in detail.

More details are available in the Tip & Tricks chapter about the Vectorscope and Vectorscope I and Q Lines in the section about Rozsahy.

See also the Vektorskop and Vectorscope (advanced) video effects.

Křivka

Switches the Waveform widget on or off.

kdenlive2304_waveform

Kdenlive Waveform widget

Contrary to what its name might suggest the Waveform widget is not for audio but represents the Luma component (whiteness) of the video. It is the same type of graph as for the RGB Parade. The horizontal axis represents the horizontal axis in the video frame. The vertical axis is the pixel luma from 0 to 255. The brightness of the point on the graph represents the count of the number of pixels with this luma in this column of pixels in the video frame.

More details are available in the Tip & Tricks chapter about the Waveform in the section about Rozsahy.

See also the Video Waveform Monitor video effect.
