HSV Hold¶

Descrizione

This effect/filter turns a certain HSV range into gray values.

This filter measures color difference between set HSV color in options and the ones measured in the video stream. Depending on options, output colors can be changed to be gray or not.

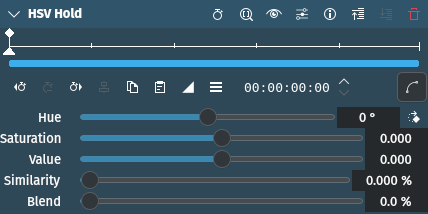

Parametri

Parametro	Valore	Descrizione
Tonalità	Gradi	Set the hue value which will be used in color difference calculation. Allowed range is from -360.000 to 360.000. Default value is 0.000.
Saturazione	Float	Set the saturation value which will be used in color difference calculation. Allowed range is from -1.000 to 1.000. Default value is 0.000.
Valore	Float	Set the value which will be used in color difference calculation. Allowed range is from -1.000 to 1.000. Default value is 0.000.
Somiglianza	Percentuale	Set similarity percentage with the key color. Allowed range is from 0.000% to 100.000%. Default value is 0.010. 0.001 matches only the exact key color, while 1.000 matches everything.
Blend	Percentuale	Blend percentage. Allowed range is from 0.0% to 100.0%. Default value is 0.0%. 0.0% makes pixels either fully gray, or not gray at all. Lower values result in more gray pixels, with a higher value the more similar the pixel’s color is to the key color.
